Each part on a vessel is represented by a Part object. Plugins can add new functionality to parts by defining new PartModules, which can then be added to Parts. It is also possible to define new subclasses of Part, but this is deprecated in favor of PartModules. More...

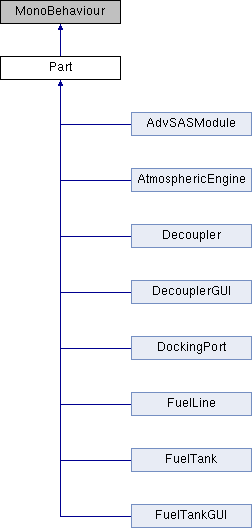

Inheritance diagram for Part:

Public Types
enum	DragModel { DragModel.DEFAULT = 0, DragModel.CONIC = 1, DragModel.CYLINDRICAL = 2, DragModel.SPHERICAL = 3, DragModel.CUBE = 4, DragModel.NONE = 5 }

enum	HighlightType { HighlightType.Disabled = 0, HighlightType.OnMouseOver = 1, HighlightType.AlwaysOn = 2 }

enum	PhysicalSignificance { PhysicalSignificance.FULL = 0, PhysicalSignificance.NONE = 1 }
	Represents whether a part has physics. More...

Public Member Functions
	Part ()

bool	activate (int currentStage, Vessel activeVessel)

void	AddAttachNode (ConfigNode node)

void	addChild (Part child)

bool	AddCrewmember (ProtoCrewMember crew)

bool	AddCrewmemberAt (ProtoCrewMember crew, int seatIndex)

void	AddExposedThermalFlux (double kilowatts)

InternalModel	AddInternalPart (ConfigNode node)

PartModule	AddModule (ConfigNode node)

PartModule	AddModule (string moduleName)
	Add a PartModule to this part. PartModules that are dynamically added to parts and don't exist in the original part.cfg will not be properly restored from persistence. More...

void	AddOnMouseDown (Part.OnActionDelegate method)

void	AddOnMouseEnter (Part.OnActionDelegate method)

void	AddOnMouseExit (Part.OnActionDelegate method)

PartResource	AddResource (ConfigNode node)

Callback< IAirstreamShield >	AddShield (IAirstreamShield shd)

void	AddSkinThermalFlux (double kilowatts)

void	AddThermalFlux (double kilowatts)

bool	AlreadyProcessedRequest (int requestID)

bool	CheckCollision (Collision c)

bool	checkLanded ()

bool	checkSplashed ()

void	cleanReferencesFromOtherParts ()

void	Couple (Part tgtPart)

void	CreateInternalModel ()

void	deactivate ()

void	decouple (float breakForce=0f)

void	DespawnAllCrew ()

void	Die ()

void	disconnect (bool controlledSeparation=false)

virtual bool	DrainFuel (float amount)
	Deprecated. Use Part.TransferResource instead. More...

string	drawStats ()

void	Effect (string effectName)

void	Effect (string effectName, float effectPower)

void	explode ()
	Calling this causes the part to explode. But you guessed that, didn't you? More...

AttachNode	findAttachNode (string nodeId)
	Find an AttachNode by its name, as a string. More...

AttachNode	findAttachNodeByPart (Part connectedPart)
	Given a child part of this part, find the AttachNode representing the connection between this part and that child. More...

AttachNode[]	findAttachNodes (string partialNodeId)

T	FindChildPart< T > ()

T	FindChildPart< T > (bool recursive)

Part	FindChildPart (string childName)

Part	FindChildPart (string childName, bool recursive)

T[]	FindChildParts< T > ()

T[]	FindChildParts< T > (bool recursive)

virtual bool	FindFuel (Part source, List< Part > fuelSources, uint reqId)
	Obsolete - Use Part.GetConnectedResources instead. More...

FXGroup	findFxGroup (string groupID)

Animation	FindModelAnimator (string animatorName, string clipName)

Animation[]	FindModelAnimators ()

Animation[]	FindModelAnimators (string clipName)

T	FindModelComponent< T > ()

T	FindModelComponent< T > (string childName)

T[]	FindModelComponents< T > ()

T[]	FindModelComponents< T > (string childName)

Transform	FindModelTransform (string childName)

Transform[]	FindModelTransforms (string childName)

T	FindModuleImplementing< T > ()

List< T >	FindModulesImplementing< T > ()

void	FindNonPhysicslessChildren (List< Part > parts)

Part	FindNonPhysicslessParent ()

AttachNode	FindPartThroughNodes (Part tgtPart, Part src=null)

bool	FindResource_StackPriority (Part origin, List< PartResource > sources, int resourceID, double demand, int requestID, bool getAll, ref double total, ref double totalMax, List< Part > partList, bool checkSurf)

void	force_activate ()
	Activates the part now, regardless of when it was scheduled to be activated in the staging order. More...

void	freeze ()

void	GetConnectedResources (int resourceID, ResourceFlowMode flowMode, List< PartResource > Resources)

void	GetConnectedResources (int resourceID, ResourceFlowMode flowMode, List< PartResource > Resources, out double amount, out double maxAmount)

float	GetModuleCosts (float defaultCost)

float	GetModuleMass (float defaultMass)

Vector3	GetModuleSize (Vector3 defaultSize)

float	GetPhysicslessChildMass ()

Transform	GetReferenceTransform ()

float	GetResourceMass ()
	The total mass of the resources held by the part. The total mass of the part is More...

float	GetResourceMass (out double thermalMass)

float	GetResourceMass (out float thermalMass)

Part	getSymmetryCounterPart (int index)

void	HandleCollision (Collision c)

bool	hasIndirectChild (Part tgtPart)

bool	hasIndirectParent (Part tgtPart)

void	InitializeEffects ()

void	InitializeModules ()

bool	isSymmetryCounterPart (Part cPart)

virtual void	LateUpdate ()

void	LoadEffects (ConfigNode node)

PartModule	LoadModule (ConfigNode node, ref int moduleIndex)

void	onAttach (Part parent, bool first=true)

virtual void	onBackup ()

void	OnCollisionEnter (Collision c)

void	OnCollisionExit (Collision c)

void	OnCollisionStay (Collision c)

void	OnCopy (Part original, bool asSymCounterpart)

void	OnDelete ()

void	onDetach (bool first=true)

virtual void	OnDrawStats ()
	Obsolete("Functional behaviour should really be happening in PartModules now. In any case, this method's been replaced with OnGetStats, where you just return the string." More...

virtual void	onFlightStateLoad (Dictionary< string, KSPParseable > parsedData)

virtual void	onFlightStateSave (Dictionary< string, KSPParseable > partDataCollection)

virtual string	OnGetStats ()

void	OnLiftOff ()

void	OnLoad ()

virtual void	OnLoad (ConfigNode node)

void	OnPartJointBreak (float breakForce)

virtual void	OnSave (ConfigNode node)

void	OnSplashDown ()

void	OnTouchDown ()

void	Pack ()

void	PromoteToPhysicalPart ()

void	propagateControlUpdate (FlightCtrlState st)

void	RegisterCrew ()

void	removeChild (Part child)

void	RemoveCrewmember (ProtoCrewMember crew)

void	RemoveModule (PartModule module)

void	RemoveModules ()

void	RemoveOnMouseDown (Part.OnActionDelegate method)

void	RemoveOnMouseEnter (Part.OnActionDelegate method)

void	RemoveOnMouseExit (Part.OnActionDelegate method)

void	RemoveShield (IAirstreamShield shd)

virtual bool	RequestFuel (Part source, float amount, uint reqId)
	Deprecated - Use Part.RequestResource instead. More...

virtual bool	RequestRCS (float amount, int earliestStage)
	Deprecated - Use Part.RequestResource instead. More...

virtual double	RequestResource (int resourceID, double demand)

virtual float	RequestResource (int resourceID, float demand)

virtual double	RequestResource (string resourceName, double demand)

virtual float	RequestResource (string resourceName, float demand)

virtual double	RequestResource (int resourceID, double demand, ResourceFlowMode flowMode)

virtual double	RequestResource (string resourceName, double demand, ResourceFlowMode flowMode)

void	ResetCollisionIgnores ()

IEnumerator	ResetJoints ()

void	ResumeVelocity ()

void	SaveEffects (ConfigNode node)

void	ScheduleSetCollisionIgnores ()

void	SendEvent (string eventName)

void	SendEvent (string eventName, BaseEventData data)

void	SendEvent (string eventName, BaseEventData data, int maxDepth)

void	SetCollisionIgnores ()

void	SetDetectCollisions (bool setState)

void	SetHierarchyRoot (Part root)

void	SetHighlight (bool active, bool recursive)

void	SetHighlightColor ()

void	SetHighlightColor (Color color)

void	SetHighlightDefault ()

void	SetHighlightType (Part.HighlightType type)

void	SetMirror (Vector3 mirrorVector)

void	setOpacity (float opacity)

void	setParent (Part p=null)

void	SetReferenceTransform (Transform t)

void	SetResource (ConfigNode node)

void	SpawnCrew ()

virtual double	TransferResource (int resourceID, double amount)

virtual double	TransferResource (PartResource resource, double amount)

void	Undock (DockedVesselInfo newVesselInfo)

void	unfreeze ()

void	Unpack ()

void	UnregisterCrew ()

void	UpdateOrgPosAndRot (Part newRoot)

void	UpdateStageability (bool master=true, bool iconUpdate=true)

delegate void	OnActionDelegate (Part p)

Static Public Member Functions
static	operator Part (GameObject o)

static Part	FromGO (GameObject obj)

static T	GetComponentUpwards< T > (GameObject obj)

static Component	GetComponentUpwards (string type, GameObject obj)

static uint	getFuelReqId ()

static void	GetPartsOutTo (Part part, HashSet< Part > parts, int maxLinks)

static int	NewRequestID ()

static Vector3	PartToVesselSpaceDir (Vector3 dir, Part p, Vessel v, PartSpaceMode space)

static Vector3	PartToVesselSpacePos (Vector3 pos, Part p, Vessel v, PartSpaceMode space)

static Quaternion	PartToVesselSpaceRot (Quaternion rot, Part p, Vessel v, PartSpaceMode space)

static Vector3	VesselToPartSpaceDir (Vector3 dir, Part p, Vessel v, PartSpaceMode space)

static Vector3	VesselToPartSpacePos (Vector3 pos, Part p, Vessel v, PartSpaceMode space)

static Quaternion	VesselToPartSpaceRot (Quaternion rot, Part p, Vessel v, PartSpaceMode space)

Public Attributes
bool	ActivatesEvenIfDisconnected
	Whether this part will actually activate if it schedule to be activated in the same stage as it is decoupled from the rocket. In particular, sepratrons must have ActivatesEvenIfDisconnected set to true if they are to function properly. More...

double	aerodynamicArea

Transform	airlock

List< IAirstreamShield >	airstreamShields

double	analyticInternalInsulationFactor

double	analyticSkinInsulationFactor

float	angularDrag

bool	angularDragByFI

double	atmDensity

bool	attached

PartJoint	attachJoint

AttachNodeMethod	attachMethod

AttachModes	attachMode
	Whether this part is attached to its parent via a stack AttachNode or a surface AttachNode. More...

List< AttachNode >	attachNodes
	An AttachNode represents the link between two attached parts. attachNodes is a list of possible nodes to which other parts can be attached to this part. You can find the parts that actually are attached using AttachNode.attachedPart. More...

AttachRules	attachRules

Vector3	attPos

Vector3	attPos0

Quaternion	attRotation

Quaternion	attRotation0

Vector3	bodyLiftLocalPosition

Vector3	bodyLiftLocalVector

float	bodyLiftMultiplier

float	bodyLiftScalar

float	breakingForce

float	breakingTorque

float	buoyancy

string	buoyancyUseCubeNamed

bool	buoyancyUseSine

Vector3	CenterOfBuoyancy

Vector3	CenterOfDisplacement

List< Part >	children
	The parts that are children of this part in the part tree (parts that were attached to this part in the editor after this part was already part of the vessel). More...

int	childStageOffset

Collider	collider

CollisionEnhancer	collisionEnhancer

Vector3	CoLOffset

Vector3	CoMOffset

Vector3	CoPOffset

uint	craftID

float	crashTolerance

int	CrewCapacity
	How many crew members this part can fit. More...

bool	crewTransferAvailable

List< Collider >	currentCollisions

string	customPartData

int	defaultInverseStage

double	depth

Part.DragModel	dragModel
	Unused? More...

Vector3	dragReferenceVector

float	dragScalar

Vector3	dragVector

Vector3	dragVectorDir

Vector3	dragVectorDirLocal

float	dragVectorMag

float	dragVectorSqrMag

double	dynamicPressurekPa

float	edgeHighlightThresholdMult

Part	editorCollision

List< Part >	editorLinks

double	emissiveConstant

float	explosionPotential

double	exposedArea

string	flagURL

uint	flightID
	A unique identifider for this part. Note that despite the name, each part on the same vessel will still have a different value in this field. This value is persistent and not affected by game load or docking/undocking or similar. This is the 'uid' value at the PART level of the persistent.sfs file. More...

bool	frozen

bool	fuelCrossFeed
	Whether this part allows fuel crossfeed. More...

List< Part >	fuelLookupTargets
	In the flight scene, fuelLookupTargets is the list of fuel lines through which this part can draw fuel. Also if this part is a docking node docked to a another docking node through which it can draw fuel, then the attached docking node will also be in fuelLookupTargets. More...

List< FXGroup >	fxGroups

float	gaugeThresholdMult

bool	GroundContact

bool	hasHeiarchyModel

bool	hasLiftModule

float	hatchObstructionCheckInwardDistance

float	hatchObstructionCheckInwardOffset

float	hatchObstructionCheckOutwardDistance

float	hatchObstructionCheckSphereRadius

double	heatConductivity

double	heatConvectiveConstant

Color	highlightColor

HighlightingSystem.Highlighter	highlighter

Part.HighlightType	highlightType

string	initialVesselName

int	inStageIndex

InternalModel	internalModel

string	InternalModelName

int	inverseStage
	The stage in which this part will activate, as shown in the staging display. (Possibly called inverseStage because the stages in KSP count down instead of up). More...

bool	isClone

bool	isControlSource

bool	isMirrored

bool	isPersistent

uint	lastFuelRequestId

uint	launchID

double	machNumber

int	manualStageOffset

float	mass
	The DRY mass of this part, not including the mass of any resources it contains More...

double	maxDepth

float	maximum_drag
	The drag coefficient of this part is equal to (total mass) * (maximum_drag) More...

double	maxTemp
	The temperature at which this part will explode. More...

double	minDepth

float	minimum_drag
	Unused. More...

Vector3	mirrorAxis

Vector3	mirrorRefAxis

Vector3	mirrorVector

uint	missionID
	A unique identifier assigned to the part when the vessel it is a part of is created. All parts on the vessel get the same missionID and it does not change. Splitting a vessel with a decoupler will result with two vessels whose parts have the same missionID. When two vessels spawned seperately dock, each part keeps its original missionID, undocking does not change this field either. More...

bool	noAutoEVA

string	NoCrossFeedNodeKey
	Specifies the name of a node through which this part will NOT draw resources. See the part.cfg of the stock tricoupler for an example of using this to prevent fuel from flowing backwards. More...

Callback	OnEditorAttach
	Add a function to this callback and it will be called when your part is attached to another part in the editor. More...

Callback	OnEditorDestroy
	Add a function to this callback and it will be called when your part is deleted in the editor. More...

Callback	OnEditorDetach
	Add a function to this callback and it will be called when your part is detached, or is part of a set of parts that are detached, in the editor. More...

Callback	OnJustAboutToBeDestroyed
	Add a function to this callback and it will be called when your part is about to be destroyed during flight. More...

Vector3	orgPos

Quaternion	orgRot

int	originalStage

bool	packed

Part	parent
	The parent of this part in the part tree: the part to which this part was attached in the editor. More...

PartBuoyancy	partBuoyancy

AvailablePart	partInfo
	Some of the part info that is displayed about this part in the editor. More...

string	partName

Transform	partTransform

bool	PermanentGroundContact

Part.PhysicalSignificance	physicalSignificance
	If physicalSignificance == Part.PhysicalSignificance.NONE, then this part doesn't actually have any physics. In particular, it has no mass, regardless of what its "mass" field is set to, and no drag. More...

int	PhysicsSignificance
	Unused? More...

Part	potentialParent

List< ProtoCrewMember >	protoModuleCrew

ProtoPartSnapshot	protoPartSnapshot

double	radiativeArea

double	radiatorCritical

double	radiatorHeadroom

double	radiatorMax

Rigidbody	rb

float	rescaleFactor

double	resourceRequestRemainingThreshold

double	resourceThermalMass

PartStates	ResumeState

float	scaleFactor

int	separationIndex

double	skinExposedArea

double	skinExposedAreaFrac

double	skinExposedMassMult

double	skinInternalConductionMult

double	skinMassPerArea

double	skinMaxTemp

double	skinSkinConductionMult

double	skinTemperature

double	skinThermalMass

double	skinThermalMassModifier

double	skinThermalMassRecip

double	skinToInternalFlux

double	skinUnexposedMassMult

double	skinUnexposedTemperature

AttachNode	srfAttachNode
	IF this part is surface-attached to its parent, srfAttachNode is the attach node describing this connection. More...

VStackIcon	stackIcon
	The sicon shown for this part in the staging display. More...

StackIconGrouping	stackIconGrouping

double	stackPriThreshold

int	stackSymmetry

bool	stageAfter

bool	stageBefore

int	stageOffset

string	stagingIcon

bool	stagingIconAlwaysShown

bool	stagingOn

bool	started

double	staticPressureAtm

double	submergedDragScalar

double	submergedDynamicPressurekPa

double	submergedLiftScalar

double	submergedPortion

Vector3	surfaceAreas

SymmetryMethod	symMethod

List< Part >	symmetryCounterparts

double	temperature
	The temperature of this part, in some arbitrary units. More...

PQS_PartCollider	terrainCollider

double	thermalConductionFlux

double	thermalConvectionFlux

double	thermalExposedFlux

double	thermalExposedFluxPrevious

double	thermalInternalFlux

double	thermalInternalFluxPrevious

double	thermalMass

double	thermalMassModifier

double	thermalMassReciprocal

double	thermalRadiationFlux

double	thermalSkinFlux

double	thermalSkinFluxPrevious

AttachNode	topNode

Vector3	vel

Vessel	vessel
	The vessel to which this part belongs. Beware that vessel == null in the editor. More...

VesselType	vesselType

float	waterAngularDragMultiplier

bool	WaterContact

Static Public Attributes
static Color	defaultHighlightNone

static Color	defaultHighlightPart

static uint	fuelRequestID

Protected Member Functions
virtual void	onActiveFixedUpdate ()

virtual void	onActiveUpdate ()

virtual void	onCopy (Part original, bool asSymCounterpart)

virtual void	onCtrlUpd (FlightCtrlState s)

virtual void	onDecouple (float breakForce)

virtual void	onDisconnect ()

virtual void	onEditorUpdate ()

virtual void	onFlightStart ()

virtual void	onFlightStartAtLaunchPad ()

virtual void	onGamePause ()

virtual void	onGameResume ()

virtual void	onJointDisable ()

virtual void	onJointReset ()

virtual void	onPack ()

virtual bool	onPartActivate ()

virtual void	onPartAttach (Part parent)

virtual void	onPartAwake ()

virtual void	onPartDeactivate ()

virtual void	onPartDelete ()

virtual void	onPartDestroy ()

virtual void	onPartDetach ()

virtual void	onPartExplode ()

virtual void	onPartFixedUpdate ()

virtual void	onPartLiftOff ()

virtual void	onPartLoad ()

virtual void	onPartSplashdown ()

virtual void	onPartStart ()

virtual void	onPartTouchdown ()

virtual void	onPartUpdate ()

virtual void	onStartComplete ()

virtual void	onUnpack ()

void	SetLayer (GameObject obj, int layer)

Protected Attributes
bool	connected

List< Part >	resourceTargets

PartStates	state

Properties
BaseActionList	Actions `[get]`

int	ClassID `[get]`

string	ClassName `[get]`

DragCubeList	DragCubes `[get]`

EffectList	Effects `[get]`

BaseEventList	Events `[get]`

BaseFieldList	Fields `[get]`

bool	hasStagingIcon `[get]`

bool	isAttached `[get, set]`

bool	isConnected `[get, set]`
	Obsolete since 0.14 and no longer working More...

bool	isControllable `[get]`

bool	Landed `[get]`

Part	localRoot `[get]`

PartModuleList	Modules `[get]`

Orbit	orbit `[get]`
	Don't use this; use Vessel.orbit instead. More...

PartValues	PartValues `[get]`

PartResourceList	Resources `[get]`
	A list of the resources contained by this part. You can loop over them with More...

Rigidbody	Rigidbody `[get]`
	The rigidbody of this part. See the Unity documentation on rigidbodies for more information. More...

bool	ShieldedFromAirstream `[get, set]`

bool	Splashed `[get]`

PartStates	State `[get]`

Vector3	WCoM `[get]`

Detailed Description

Each part on a vessel is represented by a Part object. Plugins can add new functionality to parts by defining new PartModules, which can then be added to Parts. It is also possible to define new subclasses of Part, but this is deprecated in favor of PartModules.

Member Enumeration Documentation

enum Part.DragModel

strong

Enumerator
DEFAULT
CONIC
CYLINDRICAL
SPHERICAL
CUBE
NONE

enum Part.HighlightType

strong

Enumerator
Disabled
OnMouseOver
AlwaysOn

enum Part.PhysicalSignificance

strong

Represents whether a part has physics.

Enumerator
FULL	Part is a normal, physics-enabled part.
NONE	Part has no physics, and in particular no mass or drag.

Constructor & Destructor Documentation

Part.Part ( )

Member Function Documentation

bool Part.activate	(	int	currentStage,
		Vessel	activeVessel
	)

void Part.AddAttachNode ( ConfigNode node )

void Part.addChild ( Part child )

bool Part.AddCrewmember ( ProtoCrewMember crew )

bool Part.AddCrewmemberAt	(	ProtoCrewMember	crew,
		int	seatIndex
	)

void Part.AddExposedThermalFlux ( double kilowatts )

InternalModel Part.AddInternalPart ( ConfigNode node )

PartModule Part.AddModule ( ConfigNode node )

PartModule Part.AddModule ( string moduleName )

Add a PartModule to this part. PartModules that are dynamically added to parts and don't exist in the original part.cfg will not be properly restored from persistence.

Parameters

moduleName The class name of the PartModule to add, as a string

Returns: The added PartModule

void Part.AddOnMouseDown ( Part.OnActionDelegate method )

void Part.AddOnMouseEnter ( Part.OnActionDelegate method )

void Part.AddOnMouseExit ( Part.OnActionDelegate method )

PartResource Part.AddResource ( ConfigNode node )

Callback<IAirstreamShield> Part.AddShield ( IAirstreamShield shd )

void Part.AddSkinThermalFlux ( double kilowatts )

void Part.AddThermalFlux ( double kilowatts )

bool Part.AlreadyProcessedRequest ( int requestID )

bool Part.CheckCollision ( Collision c )

bool Part.checkLanded ( )

bool Part.checkSplashed ( )

void Part.cleanReferencesFromOtherParts ( )

void Part.Couple ( Part tgtPart )

void Part.CreateInternalModel ( )

void Part.deactivate ( )

void Part.decouple ( float breakForce = 0f )

void Part.DespawnAllCrew ( )

void Part.Die ( )

void Part.disconnect ( bool controlledSeparation = false )

virtual bool Part.DrainFuel ( float amount )

virtual

Deprecated. Use Part.TransferResource instead.

Parameters

amount

Returns

Reimplemented in FuelTank.

string Part.drawStats ( )

void Part.Effect ( string effectName )

void Part.Effect	(	string	effectName,
		float	effectPower
	)

void Part.explode ( )

Calling this causes the part to explode. But you guessed that, didn't you?

AttachNode Part.findAttachNode ( string nodeId )

Find an AttachNode by its name, as a string.

Parameters

nodeId The name of the node to search for. The names of nodes are found in the part.cfg. For instance, node_stack_top describes a node with name "stack_top."

Returns: The AttachNode of the given name.

AttachNode Part.findAttachNodeByPart ( Part connectedPart )

Given a child part of this part, find the AttachNode representing the connection between this part and that child.

Parameters

connectedPart A child part of this part.

Returns: The AttachNode connecting this part to the given child.

AttachNode [] Part.findAttachNodes ( string partialNodeId )

Part Part.FindChildPart ( string childName )

Part Part.FindChildPart	(	string	childName,
		bool	recursive
	)

T Part.FindChildPart< T > ( )

Type Constraints

T

:

Part

T Part.FindChildPart< T > ( bool recursive )

Type Constraints

T

:

Part

T [] Part.FindChildParts< T > ( )

Type Constraints

T

:

Part

T [] Part.FindChildParts< T > ( bool recursive )

Type Constraints

T

:

Part

virtual bool Part.FindFuel	(	Part	source,
		List< Part >	fuelSources,
		uint	reqId
	)

virtual

Obsolete - Use Part.GetConnectedResources instead.

Reimplemented in FuelLine, and FuelTank.

FXGroup Part.findFxGroup ( string groupID )

Animation Part.FindModelAnimator	(	string	animatorName,
		string	clipName
	)

Animation [] Part.FindModelAnimators ( )

Animation [] Part.FindModelAnimators ( string clipName )

T Part.FindModelComponent< T > ( )

Type Constraints

T

:

Component

T Part.FindModelComponent< T > ( string childName )

Type Constraints

T

:

Component

T [] Part.FindModelComponents< T > ( )

Type Constraints

T

:

Component

T [] Part.FindModelComponents< T > ( string childName )

Type Constraints

T

:

Component

Transform Part.FindModelTransform ( string childName )

Transform [] Part.FindModelTransforms ( string childName )

T Part.FindModuleImplementing< T > ( )

Type Constraints

T

:

class

List<T> Part.FindModulesImplementing< T > ( )

Type Constraints

T

:

class

void Part.FindNonPhysicslessChildren ( List< Part > parts )

Part Part.FindNonPhysicslessParent ( )

AttachNode Part.FindPartThroughNodes	(	Part	tgtPart,
		Part	src = `null`
	)

bool Part.FindResource_StackPriority	(	Part	origin,
		List< PartResource >	sources,
		int	resourceID,
		double	demand,
		int	requestID,
		bool	getAll,
		ref double	total,
		ref double	totalMax,
		List< Part >	partList,
		bool	checkSurf
	)

void Part.force_activate ( )

Activates the part now, regardless of when it was scheduled to be activated in the staging order.

void Part.freeze ( )

static Part Part.FromGO ( GameObject obj )

static

static Component Part.GetComponentUpwards	(	string	type,
		GameObject	obj
	)

static

static T Part.GetComponentUpwards< T > ( GameObject obj )

static

Type Constraints

T

:

Component

void Part.GetConnectedResources	(	int	resourceID,
		ResourceFlowMode	flowMode,
		List< PartResource >	Resources
	)

void Part.GetConnectedResources	(	int	resourceID,
		ResourceFlowMode	flowMode,
		List< PartResource >	Resources,
		out double	amount,
		out double	maxAmount
	)

static uint Part.getFuelReqId ( )

static

float Part.GetModuleCosts ( float defaultCost )

float Part.GetModuleMass ( float defaultMass )

Vector3 Part.GetModuleSize ( Vector3 defaultSize )

static void Part.GetPartsOutTo	(	Part	part,
		HashSet< Part >	parts,
		int	maxLinks
	)

static

float Part.GetPhysicslessChildMass ( )

Transform Part.GetReferenceTransform ( )

float Part.GetResourceMass ( )

The total mass of the resources held by the part. The total mass of the part is

mass + GetResourceMass()

Returns: Total resource mass, in tonnes

float Part.GetResourceMass ( out double thermalMass )

float Part.GetResourceMass ( out float thermalMass )

Part Part.getSymmetryCounterPart ( int index )

void Part.HandleCollision ( Collision c )

bool Part.hasIndirectChild ( Part tgtPart )

bool Part.hasIndirectParent ( Part tgtPart )

void Part.InitializeEffects ( )

void Part.InitializeModules ( )

bool Part.isSymmetryCounterPart ( Part cPart )

virtual void Part.LateUpdate ( )

virtual

void Part.LoadEffects ( ConfigNode node )

PartModule Part.LoadModule	(	ConfigNode	node,
		ref int	moduleIndex
	)

static int Part.NewRequestID ( )

static

delegate void Part.OnActionDelegate ( Part p )

virtual void Part.onActiveFixedUpdate ( )

protectedvirtual

virtual void Part.onActiveUpdate ( )

protectedvirtual

void Part.onAttach	(	Part	parent,
		bool	first = `true`
	)

virtual void Part.onBackup ( )

virtual

Reimplemented in FuelLine.

void Part.OnCollisionEnter ( Collision c )

void Part.OnCollisionExit ( Collision c )

void Part.OnCollisionStay ( Collision c )

virtual void Part.onCopy	(	Part	original,
		bool	asSymCounterpart
	)

protectedvirtual

Reimplemented in FuelLine.

void Part.OnCopy	(	Part	original,
		bool	asSymCounterpart
	)

virtual void Part.onCtrlUpd ( FlightCtrlState s )

protectedvirtual

virtual void Part.onDecouple ( float breakForce )

protectedvirtual

Reimplemented in FuelTank, and FuelTankGUI.

void Part.OnDelete ( )

void Part.onDetach ( bool first = true )

virtual void Part.onDisconnect ( )

protectedvirtual

Reimplemented in AdvSASModule.

virtual void Part.OnDrawStats ( )

virtual

Obsolete("Functional behaviour should really be happening in PartModules now. In any case, this method's been replaced with OnGetStats, where you just return the string."

Reimplemented in FuelLine, FuelTank, FuelTankGUI, DecouplerGUI, DockingPort, and Decoupler.

virtual void Part.onEditorUpdate ( )

protectedvirtual

Reimplemented in FuelLine.

virtual void Part.onFlightStart ( )

protectedvirtual

Reimplemented in FuelLine, FuelTank, FuelTankGUI, DockingPort, and AdvSASModule.

virtual void Part.onFlightStartAtLaunchPad ( )

protectedvirtual

virtual void Part.onFlightStateLoad ( Dictionary< string, KSPParseable > parsedData )

virtual

Reimplemented in FuelTank, and FuelTankGUI.

virtual void Part.onFlightStateSave ( Dictionary< string, KSPParseable > partDataCollection )

virtual

Reimplemented in FuelTank, and FuelTankGUI.

virtual void Part.onGamePause ( )

protectedvirtual

virtual void Part.onGameResume ( )

protectedvirtual

virtual string Part.OnGetStats ( )

virtual

virtual void Part.onJointDisable ( )

protectedvirtual

virtual void Part.onJointReset ( )

protectedvirtual

void Part.OnLiftOff ( )

void Part.OnLoad ( )

virtual void Part.OnLoad ( ConfigNode node )

virtual

virtual void Part.onPack ( )

protectedvirtual

virtual bool Part.onPartActivate ( )

protectedvirtual

Reimplemented in FuelTank, FuelTankGUI, DockingPort, DecouplerGUI, and Decoupler.

virtual void Part.onPartAttach ( Part parent )

protectedvirtual

Reimplemented in FuelLine.

virtual void Part.onPartAwake ( )

protectedvirtual

Reimplemented in FuelTank, and FuelTankGUI.

virtual void Part.onPartDeactivate ( )

protectedvirtual

virtual void Part.onPartDelete ( )

protectedvirtual

virtual void Part.onPartDestroy ( )

protectedvirtual

Reimplemented in FuelLine, and AdvSASModule.

virtual void Part.onPartDetach ( )

protectedvirtual

Reimplemented in FuelLine.

virtual void Part.onPartExplode ( )

protectedvirtual

Reimplemented in AdvSASModule.

virtual void Part.onPartFixedUpdate ( )

protectedvirtual

Reimplemented in FuelLine, FuelTank, and AdvSASModule.

void Part.OnPartJointBreak ( float breakForce )

virtual void Part.onPartLiftOff ( )

protectedvirtual

virtual void Part.onPartLoad ( )

protectedvirtual

Reimplemented in FuelLine.

virtual void Part.onPartSplashdown ( )

protectedvirtual

virtual void Part.onPartStart ( )

protectedvirtual

Reimplemented in FuelLine, FuelTank, FuelTankGUI, DockingPort, DecouplerGUI, AdvSASModule, and Decoupler.

virtual void Part.onPartTouchdown ( )

protectedvirtual

virtual void Part.onPartUpdate ( )

protectedvirtual

virtual void Part.OnSave ( ConfigNode node )

virtual

void Part.OnSplashDown ( )

virtual void Part.onStartComplete ( )

protectedvirtual

void Part.OnTouchDown ( )

virtual void Part.onUnpack ( )

protectedvirtual

static Part.operator Part ( GameObject o )

explicitstatic

void Part.Pack ( )

static Vector3 Part.PartToVesselSpaceDir	(	Vector3	dir,
		Part	p,
		Vessel	v,
		PartSpaceMode	space
	)

static

static Vector3 Part.PartToVesselSpacePos	(	Vector3	pos,
		Part	p,
		Vessel	v,
		PartSpaceMode	space
	)

static

static Quaternion Part.PartToVesselSpaceRot	(	Quaternion	rot,
		Part	p,
		Vessel	v,
		PartSpaceMode	space
	)

static

void Part.PromoteToPhysicalPart ( )

void Part.propagateControlUpdate ( FlightCtrlState st )

void Part.RegisterCrew ( )

void Part.removeChild ( Part child )

void Part.RemoveCrewmember ( ProtoCrewMember crew )

void Part.RemoveModule ( PartModule module )

void Part.RemoveModules ( )

void Part.RemoveOnMouseDown ( Part.OnActionDelegate method )

void Part.RemoveOnMouseEnter ( Part.OnActionDelegate method )

void Part.RemoveOnMouseExit ( Part.OnActionDelegate method )

void Part.RemoveShield ( IAirstreamShield shd )

virtual bool Part.RequestFuel	(	Part	source,
		float	amount,
		uint	reqId
	)

virtual

Deprecated - Use Part.RequestResource instead.

Parameters

source
amount
reqId

Returns

Reimplemented in FuelLine, FuelTank, and FuelTankGUI.

virtual bool Part.RequestRCS	(	float	amount,
		int	earliestStage
	)

virtual

Deprecated - Use Part.RequestResource instead.

Parameters

amount
earliestStage

Returns

virtual double Part.RequestResource	(	int	resourceID,
		double	demand
	)

virtual

virtual float Part.RequestResource	(	int	resourceID,
		float	demand
	)

virtual

virtual double Part.RequestResource	(	string	resourceName,
		double	demand
	)

virtual

virtual float Part.RequestResource	(	string	resourceName,
		float	demand
	)

virtual

virtual double Part.RequestResource	(	int	resourceID,
		double	demand,
		ResourceFlowMode	flowMode
	)

virtual

virtual double Part.RequestResource	(	string	resourceName,
		double	demand,
		ResourceFlowMode	flowMode
	)

virtual

void Part.ResetCollisionIgnores ( )

IEnumerator Part.ResetJoints ( )

void Part.ResumeVelocity ( )

void Part.SaveEffects ( ConfigNode node )

void Part.ScheduleSetCollisionIgnores ( )

void Part.SendEvent ( string eventName )

void Part.SendEvent	(	string	eventName,
		BaseEventData	data
	)

void Part.SendEvent	(	string	eventName,
		BaseEventData	data,
		int	maxDepth
	)

void Part.SetCollisionIgnores ( )

void Part.SetDetectCollisions ( bool setState )

void Part.SetHierarchyRoot ( Part root )

void Part.SetHighlight	(	bool	active,
		bool	recursive
	)

void Part.SetHighlightColor ( )

void Part.SetHighlightColor ( Color color )

void Part.SetHighlightDefault ( )

void Part.SetHighlightType ( Part.HighlightType type )

void Part.SetLayer	(	GameObject	obj,
		int	layer
	)

protected

void Part.SetMirror ( Vector3 mirrorVector )

void Part.setOpacity ( float opacity )

void Part.setParent ( Part p = null )

void Part.SetReferenceTransform ( Transform t )

void Part.SetResource ( ConfigNode node )

void Part.SpawnCrew ( )

virtual double Part.TransferResource	(	int	resourceID,
		double	amount
	)

virtual

virtual double Part.TransferResource	(	PartResource	resource,
		double	amount
	)

virtual

void Part.Undock ( DockedVesselInfo newVesselInfo )

void Part.unfreeze ( )

void Part.Unpack ( )

void Part.UnregisterCrew ( )

void Part.UpdateOrgPosAndRot ( Part newRoot )

void Part.UpdateStageability	(	bool	master = `true`,
		bool	iconUpdate = `true`
	)

static Vector3 Part.VesselToPartSpaceDir	(	Vector3	dir,
		Part	p,
		Vessel	v,
		PartSpaceMode	space
	)

static

static Vector3 Part.VesselToPartSpacePos	(	Vector3	pos,
		Part	p,
		Vessel	v,
		PartSpaceMode	space
	)

static

static Quaternion Part.VesselToPartSpaceRot	(	Quaternion	rot,
		Part	p,
		Vessel	v,
		PartSpaceMode	space
	)

static

Member Data Documentation

bool Part.ActivatesEvenIfDisconnected

Whether this part will actually activate if it schedule to be activated in the same stage as it is decoupled from the rocket. In particular, sepratrons must have ActivatesEvenIfDisconnected set to true if they are to function properly.

double Part.aerodynamicArea

Transform Part.airlock

List<IAirstreamShield> Part.airstreamShields

double Part.analyticInternalInsulationFactor

double Part.analyticSkinInsulationFactor

float Part.angularDrag

bool Part.angularDragByFI

double Part.atmDensity

bool Part.attached

PartJoint Part.attachJoint

AttachNodeMethod Part.attachMethod

AttachModes Part.attachMode

Whether this part is attached to its parent via a stack AttachNode or a surface AttachNode.

List<AttachNode> Part.attachNodes

An AttachNode represents the link between two attached parts. attachNodes is a list of possible nodes to which other parts can be attached to this part. You can find the parts that actually are attached using AttachNode.attachedPart.

AttachRules Part.attachRules

Vector3 Part.attPos

Vector3 Part.attPos0

Quaternion Part.attRotation

Quaternion Part.attRotation0

Vector3 Part.bodyLiftLocalPosition

Vector3 Part.bodyLiftLocalVector

float Part.bodyLiftMultiplier

float Part.bodyLiftScalar

float Part.breakingForce

float Part.breakingTorque

float Part.buoyancy

string Part.buoyancyUseCubeNamed

bool Part.buoyancyUseSine

Vector3 Part.CenterOfBuoyancy

Vector3 Part.CenterOfDisplacement

List<Part> Part.children

The parts that are children of this part in the part tree (parts that were attached to this part in the editor after this part was already part of the vessel).

int Part.childStageOffset

Collider Part.collider

CollisionEnhancer Part.collisionEnhancer

Vector3 Part.CoLOffset

Vector3 Part.CoMOffset

bool Part.connected

protected

Vector3 Part.CoPOffset

uint Part.craftID

float Part.crashTolerance

int Part.CrewCapacity

How many crew members this part can fit.

bool Part.crewTransferAvailable

List<Collider> Part.currentCollisions

string Part.customPartData

Color Part.defaultHighlightNone

static

Color Part.defaultHighlightPart

static

int Part.defaultInverseStage

double Part.depth

Part.DragModel Part.dragModel

Unused?

Vector3 Part.dragReferenceVector

float Part.dragScalar

Vector3 Part.dragVector

Vector3 Part.dragVectorDir

Vector3 Part.dragVectorDirLocal

float Part.dragVectorMag

float Part.dragVectorSqrMag

double Part.dynamicPressurekPa

float Part.edgeHighlightThresholdMult

Part Part.editorCollision

List<Part> Part.editorLinks

double Part.emissiveConstant

float Part.explosionPotential

double Part.exposedArea

string Part.flagURL

uint Part.flightID

A unique identifider for this part. Note that despite the name, each part on the same vessel will still have a different value in this field. This value is persistent and not affected by game load or docking/undocking or similar. This is the 'uid' value at the PART level of the persistent.sfs file.

bool Part.frozen

bool Part.fuelCrossFeed

Whether this part allows fuel crossfeed.

List<Part> Part.fuelLookupTargets

In the flight scene, fuelLookupTargets is the list of fuel lines through which this part can draw fuel. Also if this part is a docking node docked to a another docking node through which it can draw fuel, then the attached docking node will also be in fuelLookupTargets.

uint Part.fuelRequestID

static

List<FXGroup> Part.fxGroups

float Part.gaugeThresholdMult

bool Part.GroundContact

bool Part.hasHeiarchyModel

bool Part.hasLiftModule

float Part.hatchObstructionCheckInwardDistance

float Part.hatchObstructionCheckInwardOffset

float Part.hatchObstructionCheckOutwardDistance

float Part.hatchObstructionCheckSphereRadius

double Part.heatConductivity

double Part.heatConvectiveConstant

Color Part.highlightColor

HighlightingSystem.Highlighter Part.highlighter

Part.HighlightType Part.highlightType

string Part.initialVesselName

int Part.inStageIndex

InternalModel Part.internalModel

string Part.InternalModelName

int Part.inverseStage

The stage in which this part will activate, as shown in the staging display. (Possibly called inverseStage because the stages in KSP count down instead of up).

bool Part.isClone

bool Part.isControlSource

bool Part.isMirrored

bool Part.isPersistent

uint Part.lastFuelRequestId

uint Part.launchID

double Part.machNumber

int Part.manualStageOffset

float Part.mass

The DRY mass of this part, not including the mass of any resources it contains

double Part.maxDepth

float Part.maximum_drag

The drag coefficient of this part is equal to (total mass) * (maximum_drag)

double Part.maxTemp

The temperature at which this part will explode.

double Part.minDepth

float Part.minimum_drag

Unused.

Vector3 Part.mirrorAxis

Vector3 Part.mirrorRefAxis

Vector3 Part.mirrorVector

uint Part.missionID

A unique identifier assigned to the part when the vessel it is a part of is created. All parts on the vessel get the same missionID and it does not change. Splitting a vessel with a decoupler will result with two vessels whose parts have the same missionID. When two vessels spawned seperately dock, each part keeps its original missionID, undocking does not change this field either.

bool Part.noAutoEVA

string Part.NoCrossFeedNodeKey

Specifies the name of a node through which this part will NOT draw resources. See the part.cfg of the stock tricoupler for an example of using this to prevent fuel from flowing backwards.

Callback Part.OnEditorAttach

Add a function to this callback and it will be called when your part is attached to another part in the editor.

Callback Part.OnEditorDestroy

Add a function to this callback and it will be called when your part is deleted in the editor.

Callback Part.OnEditorDetach

Add a function to this callback and it will be called when your part is detached, or is part of a set of parts that are detached, in the editor.

Callback Part.OnJustAboutToBeDestroyed

Add a function to this callback and it will be called when your part is about to be destroyed during flight.

Vector3 Part.orgPos

Quaternion Part.orgRot

int Part.originalStage

bool Part.packed

Part Part.parent

The parent of this part in the part tree: the part to which this part was attached in the editor.

PartBuoyancy Part.partBuoyancy

AvailablePart Part.partInfo

Some of the part info that is displayed about this part in the editor.

string Part.partName

Transform Part.partTransform

bool Part.PermanentGroundContact

Part.PhysicalSignificance Part.physicalSignificance

If physicalSignificance == Part.PhysicalSignificance.NONE, then this part doesn't actually have any physics. In particular, it has no mass, regardless of what its "mass" field is set to, and no drag.

int Part.PhysicsSignificance

Unused?

Part Part.potentialParent

List<ProtoCrewMember> Part.protoModuleCrew

ProtoPartSnapshot Part.protoPartSnapshot

double Part.radiativeArea

double Part.radiatorCritical

double Part.radiatorHeadroom

double Part.radiatorMax

Rigidbody Part.rb

float Part.rescaleFactor

double Part.resourceRequestRemainingThreshold

List<Part> Part.resourceTargets

protected

double Part.resourceThermalMass

PartStates Part.ResumeState

float Part.scaleFactor

int Part.separationIndex

double Part.skinExposedArea

double Part.skinExposedAreaFrac

double Part.skinExposedMassMult

double Part.skinInternalConductionMult

double Part.skinMassPerArea

double Part.skinMaxTemp

double Part.skinSkinConductionMult

double Part.skinTemperature

double Part.skinThermalMass

double Part.skinThermalMassModifier

double Part.skinThermalMassRecip

double Part.skinToInternalFlux

double Part.skinUnexposedMassMult

double Part.skinUnexposedTemperature

AttachNode Part.srfAttachNode

IF this part is surface-attached to its parent, srfAttachNode is the attach node describing this connection.

VStackIcon Part.stackIcon

The sicon shown for this part in the staging display.

StackIconGrouping Part.stackIconGrouping

double Part.stackPriThreshold

int Part.stackSymmetry

bool Part.stageAfter

bool Part.stageBefore

int Part.stageOffset

string Part.stagingIcon

bool Part.stagingIconAlwaysShown

bool Part.stagingOn

bool Part.started

PartStates Part.state

protected

double Part.staticPressureAtm

double Part.submergedDragScalar

double Part.submergedDynamicPressurekPa

double Part.submergedLiftScalar

double Part.submergedPortion

Vector3 Part.surfaceAreas

SymmetryMethod Part.symMethod

List<Part> Part.symmetryCounterparts

double Part.temperature

The temperature of this part, in some arbitrary units.

PQS_PartCollider Part.terrainCollider

double Part.thermalConductionFlux

double Part.thermalConvectionFlux

double Part.thermalExposedFlux

double Part.thermalExposedFluxPrevious

double Part.thermalInternalFlux

double Part.thermalInternalFluxPrevious

double Part.thermalMass

double Part.thermalMassModifier

double Part.thermalMassReciprocal

double Part.thermalRadiationFlux

double Part.thermalSkinFlux

double Part.thermalSkinFluxPrevious

AttachNode Part.topNode

Vector3 Part.vel

Vessel Part.vessel

The vessel to which this part belongs. Beware that vessel == null in the editor.

VesselType Part.vesselType

float Part.waterAngularDragMultiplier

bool Part.WaterContact

Property Documentation

BaseActionList Part.Actions

get

int Part.ClassID

get

string Part.ClassName

get

DragCubeList Part.DragCubes

get

EffectList Part.Effects

get

BaseEventList Part.Events

get

BaseFieldList Part.Fields

get

bool Part.hasStagingIcon

get

bool Part.isAttached

getset

bool Part.isConnected

getset

Obsolete since 0.14 and no longer working

bool Part.isControllable

get

bool Part.Landed

get

Part Part.localRoot

get

PartModuleList Part.Modules

get

Orbit Part.orbit

get

Don't use this; use Vessel.orbit instead.

PartValues Part.PartValues

get

PartResourceList Part.Resources

get

A list of the resources contained by this part. You can loop over them with

foreach(PartResource resource in part.Resources) { ... }

Rigidbody Part.Rigidbody

get

The rigidbody of this part. See the Unity documentation on rigidbodies for more information.

bool Part.ShieldedFromAirstream

getset

bool Part.Splashed

get

PartStates Part.State

get

Vector3 Part.WCoM

get

The documentation for this class was generated from the following file:

src/Part.cs

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Static Public Attributes

Protected Member Functions

Protected Attributes

Properties

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

Property Documentation
