ScenarioDiscoverableObjects Class Reference

Stores information on asteroid spawning More...

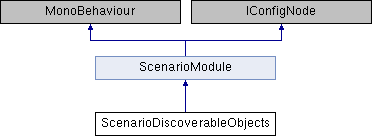

Inheritance diagram for ScenarioDiscoverableObjects:

Public Member Functions
void	debugSpawnProbability ()
	Returns a description of the current spawn interval and spawn odds More...
void	OnAwake ()
void	OnLoad (ConfigNode node)
void	OnSave (ConfigNode node)
void	SpawnAsteroid ()
	Creates a random asteroid and Kerbin-intercepting orbit More...
void	SpawnLastAsteroid ()
	Creates a random asteroid and Kerbin-intercepting orbit. More...
void	Start ()
Public Member Functions inherited from ScenarioModule
	ScenarioModule ()
void	Load (ConfigNode node)
void	Save (ConfigNode node)

Public Attributes
int	spawnGroupMinLimit = 3
	Number of untracked asteroids at which spawn rate begins to slow More...
int	spawnGroupMaxLimit = 8
	Number of untracked asteroids at which spawn rate stops completely More...
FloatCurve	sizeCurve
	Sets size distribution for asteroids More...
int	spawnOddsAgainst = 2
	Controls the fraction of spawn checks in which new asteroids are generated More...
float	spawnInterval = 15.0f
	Number of seconds between asteroid checks More...
float	maxUntrackedLifetime = 20.0f
	Longest time an asteroid can go untracked before disappearing, in Earth days More...
float	minUntrackedLifetime = 1.0f
	Shortest time an asteroid can go untracked before disappearing, in Earth days More...
Public Attributes inherited from ScenarioModule
ScenarioRunner	runner
ProtoScenarioModule	snapshot
List< GameScenes >	targetScenes

Additional Inherited Members
Properties inherited from ScenarioModule
int	ClassID [get]
string	ClassName [get]
BaseEventList	Events [get]
BaseFieldList	Fields [get]

Detailed Description

Stores information on asteroid spawning

Executed while in Flight, Tracking Station, and Space Center scenes

The module schedules periodic "spawn checks" while the game clock is running, at an interval set by spawnInterval. At each spawn check, any asteroids that have gone untracked for too long are removed from the game.

To add an element of randomness, only a fraction of checks (controlled by spawnOddsAgainst) have a chance to produce asteroids. No asteroids are produced if the number of untracked asteroids already in the game exceeds spawnGroupMaxLimit. Because spawn checks happen very frequently, the number of detected asteroids in a game where the player never tracks an asteroid will almost always be close to spawnGroupMaxLimit.

Member Function Documentation

void ScenarioDiscoverableObjects.debugSpawnProbability

(

)

Returns a description of the current spawn interval and spawn odds

See also

spawnOddsAgainst, spawnInterval

void ScenarioDiscoverableObjects.OnAwake ( )

virtual

Reimplemented from ScenarioModule.

void ScenarioDiscoverableObjects.OnLoad ( ConfigNode  node )

virtual

Reimplemented from ScenarioModule.

void ScenarioDiscoverableObjects.OnSave ( ConfigNode  node )

virtual

Reimplemented from ScenarioModule.

void ScenarioDiscoverableObjects.SpawnAsteroid

(

)

Creates a random asteroid and Kerbin-intercepting orbit

void ScenarioDiscoverableObjects.SpawnLastAsteroid

(

)

Creates a random asteroid and Kerbin-intercepting orbit.

See also

SpawnAsteroid()

Asteroid is identical to the last call of SpawnAsteroid()

Intended for debugging?

void ScenarioDiscoverableObjects.Start

(

)

Member Data Documentation

float ScenarioDiscoverableObjects.maxUntrackedLifetime = 20.0f

Longest time an asteroid can go untracked before disappearing, in Earth days

See also

DiscoveryInfo.unobservedLifetime

float ScenarioDiscoverableObjects.minUntrackedLifetime = 1.0f

Shortest time an asteroid can go untracked before disappearing, in Earth days

See also

DiscoveryInfo.unobservedLifetime

FloatCurve ScenarioDiscoverableObjects.sizeCurve

Sets size distribution for asteroids

The output range of [0, 1) is divided equally among the classes. So [0, 0.2) is class A, [0.2, 0.4) is class B, ..., [0.8, 1) is class E.

Default curve translates to 12% class A, 13% class B, 49% class C, 13% class D, and 12% class E

int ScenarioDiscoverableObjects.spawnGroupMaxLimit = 8

Number of untracked asteroids at which spawn rate stops completely

int ScenarioDiscoverableObjects.spawnGroupMinLimit = 3

Number of untracked asteroids at which spawn rate begins to slow

float ScenarioDiscoverableObjects.spawnInterval = 15.0f

Number of seconds between asteroid checks

These are approximately seconds of in-game time, but if you make sudden changes in the time warp rate the spawner may need some time to catch up.

Since asteroids are removed during spawn checks, spawnInterval also controls the asteroid removal rate.

int ScenarioDiscoverableObjects.spawnOddsAgainst = 2

Controls the fraction of spawn checks in which new asteroids are generated

The probability of spawning an asteroid is 1 / (1 + spawnOddsAgainst)

---

The documentation for this class was generated from the following file:

• src/ScenarioDiscoverableObjects.cs
